Splitter Terminal Fiber Optic Termination Box Plastic Material White Color

Product Categories
Optic Network Technology Co., Ltd.
Contact Now

Splitter Terminal Fiber Optic Termination Box Plastic Material White Color

  • 1
  • 2

Model Number : GP-02H

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

Material : Plastic

Color : White

Storage of fibers : G.657

Splice Capacity : 2 fibers

Splice Method : Fusion Splice

Adapter type and count : 2 SC

Input Cable : 3mm or figure 8 (2*3mm)

Outside Dimension (mm) : 80*100*25

Contact Now

Splitter Terminal, FTTx Communication Network, FTTH Termination Box, Desk or Wall Mount, 2 fibers

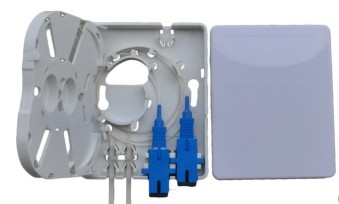

GP-02H FTTH Termination Box



Application :

The GP-02H is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.



Splitter Terminal Fiber Optic Termination Box Plastic Material White Color         Splitter Terminal Fiber Optic Termination Box Plastic Material White Color



Features & Benefits

  • Support termination, splicing and storage for fiber optic cable systems
  • Suitable for two adapters SC configuration
  • Compatible with G.657A1 and G.657B3
  • Compact structure and perfect fiber management
  • Engineered fiber routing protect bend radius through the unit to ensure signal integrity



Specifications

Parameter Value Remark
Model GP-02H
Outside Dimension (mm) 80*100*25


Material Plastic
Color White
Storage of fibers G.657
Splice capacity 2 fibers
Splice Method Fusion Splice 45mm sleeve
Adapter type and count 2 SC
Input cable 3mm or figure 8 (2*3mm) From side or bottom



Accessories

No. Name Qty.
1 Fiber splice protection sleeve 2pcs
2 Screw kits 2 set



 Splitter Terminal Fiber Optic Termination Box Plastic Material White Color
