12 Ports Fiber Optic Termination Cabinet , Optical Network Terminal Box

Model Number : MDU 232

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

PLC Splitter : 1x4, 2x4, 1x8, 2x8, 1x16, 2x16 1x32 or 2x32

Max. No. of Adapter : 32 pcs of SC simplex or LC duplex

Dimension(mm) : 350 x 340 x 120

Max Capacity : 32 fibers

No. of Ports : 12 ports

Contact Now

Fiber Optic Terminal Box, Splitter Terminal, Outdoor Fiber Termination Box, Outdoor Multi-dwelling Unit (32 fibers)

Outdoor MDU 232 Splitter Terminal

Description

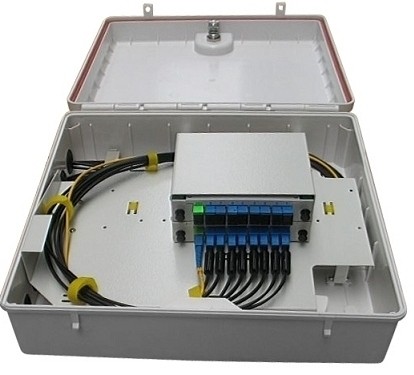

The MDU 232 Splitter Terminal from Optic Network Technology Co.Ltd. is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 232 splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

12 Ports Fiber Optic Termination Cabinet , Optical Network Terminal Box

MDU 232B

Features

● Indoor or outdoor rated

● available 1x4, 1x8, 1x16, 1x32 splitter as well as 2x4, 2x8, 2x16, 2x32 splitter

● Suitable for wall-mounting or pole mounting application.

● 12 ports

12 Ports Fiber Optic Termination Cabinet , Optical Network Terminal Box

MDU 232C

Application

● FTTH, FTTB, FTTC

● Telecommunication Network

● CATV

● Local Area Network

12 Ports Fiber Optic Termination Cabinet , Optical Network Terminal Box

Cassette Type of PLC Module Type of PLC

Dimensions

Model

Max. Capacity

Max. No. of Adapter

PLC Splitter

Dimension(mm)

(WxLxD)

No. of Ports

MDU 232B

32 fibers

32 pcs of SC simplex

or LC duplex

1x4, 2x4, 1x8, 2x8

1x16, 2x16

1x32 or 2x32

350x340x120

12 ports

MDU 232C

MDU232B (cassette type of PLC) , MDU232C (for module type of PLC )
